The Effects of Dry Needling As a Novel Recovery Strategy on Quadriceps Muscle Fatigue: A Pilot Study

Document Type: Original article

Authors

1 Department of Physiotherapy, Faculty of Rehabilitation, Tehran University of Medical Sciences, Tehran, Iran

2 Sports Medicine Research Center, Neuroscience Institute, Tehran University of Medical Sciences, Tehran, Iran

3 Neuromusculoskeletal Research Center, Iran University of Medical Sciences, Tehran, Iran

4 Bethesda Physiocare, Bethesda, MD, USA; Myopain Seminars, Bethesda, MD, USA

Abstract

Background: Dry Needling (DN) is a procedure to treat neuromusculoskeletal disorders. This study aimed to examine the effects of DN on quadriceps muscle fatigue in healthy young adults.
Methods: Fifteen healthy young subjects (13 male, 2 female; mean±standard deviation 26.1±5.9 years) participated in a pretest-posttest study. Subjects received one session of DN for a total of 3 minutes with one minute each for the vastus medialis, vastus lateralis, and rectus femoris muscles. The Isometric Peak Torque (IPT), Single Leg Hop (SLH) test, and Y Balance Test (YBT) were measured at baseline, immediately after completion of the fatigue protocol, and after DN.
Results: Repeated measures ANOVA demonstrated significant improvements in the IPT, SLH, and YBT scores after DN. Effects sizes were medium for IPT (d =0.61) and SLH test (d=0.57), and large for YBT (d=0.7).
Conclusion: Dry needling had a significant effect on recovery of quadriceps muscle fatigue, functional performance, and dynamic balance. These findings suggest that DN can be utilized as a novel recovery strategy to manage muscle fatigue. Further research is warranted.

Keywords


Abstract
Background: Dry Needling (DN) is a procedure to treat neuromusculoskeletal disorders. This study aimed to examine the effects of DN on quadriceps muscle fatigue in healthy young adults.
Methods: Fifteen healthy young subjects (13 male, 2 female; mean±standard deviation 26.1±5.9 years) participated in a pretest-posttest study. Subjects received one session of DN for a total of 3 minutes with one minute each for the vastus medialis, vastus lateralis, and rectus femoris muscles. The Isometric Peak Torque (IPT), Single Leg Hop (SLH) test, and Y Balance Test (YBT) were measured at baseline, immediately after completion of the fatigue protocol, and after DN.
Results: Repeated measures ANOVA demonstrated significant improvements in the IPT, SLH, and YBT scores after DN. Effects sizes were medium for IPT (d =0.61) and SLH test (d=0.57), and large for YBT (d=0.7).
Conclusion: Dry needling had a significant effect on recovery of quadriceps muscle fatigue, functional performance, and dynamic balance. These findings suggest that DN can be utilized as a novel recovery strategy to manage muscle fatigue. Further research is warranted.
Keyword: Dry needling, Exercise, Muscle fatigue, Sports

Introduction
Muscle fatigue is a common symptom experienced by people and especially athletes at some time during physical exertion. Muscle fatigue is defined as an exercise-induced decrease in maximal voluntary muscle force or power generation following an intensive or prolonged training sessions (1). It is an important, complex phenomenon that can impair function and task performance (2). Muscle fatigue is divided into central and peripheral/muscular fatigue (3). Central fatigue originates from a reduced neural motor drive to the muscles, while peripheral fatigue relates to the impairment in the mechanism of muscle contraction resulting in decrease in muscle force that limits performing physical activities.
Athletic injuries mostly occur in the lower extremities and negatively impact performance and competitiveness. Lower extremity muscle fatigue and, in particular, fatigue of the knee extensors, can have destabilizing effects on postural control and balance (4). Multiple impairments may develop due to muscle fatigue, especially during tournaments when players compete multiple times within a relatively short time period (5). Therefore, recovery from muscle fatigue is important to prevent injuries, to maximize performance, and to accelerate a return to training and competing.
Physiotherapists use a variety of modalities to facilitate recovery from muscular fatigue and maximize the performance of athletes, including massage therapy, contrast water therapy, neuromuscular electrostimulation therapy, whole body vibration, Dry Needling (DN), and active recovery, among others. There is, however, a lack of evidence supporting their effectiveness for improving muscle fatigue (6).
Dry needling is an increasingly popular intervention to treat various neuromusculoskeletal conditions that involves inserting a solid acupuncture-like needle into muscles and fascia (7). Dry needling has been applied most commonly to treat trigger points and their associated symptoms (8). It can be used as a single modality or as an adjunct in combination with other physiotherapy modalities to reduce pain (9), decrease spasticity (10-12), and increase muscle force (13) or flexibility (14).
It appears that there are no studies to assess the effects of DN on muscle recovery after a fatiguing activity. Therefore, the aim of the present study was to determine the effects of a single DN session on muscle recovery after quadriceps muscle fatigue.

Material and Methods
This interventional, pretest-posttest study was approved by the review board, School of Rehabilitation, and the Ethical Committee of Tehran University of Medical Sciences (IR.TUMS.VCR.REC.1397.982).
Healthy young adults recruited from Tehran University of Medical Sciences, between 20-40 years of age, who agreed to participate, were included in the study. The exclusion criteria were: 1) injuries, fractures, pain in lower extremity, or a history of surgery; 2) vestibular/neuromuscular, or cardiovascular diseases; 3) performing intense physical exercises 48 hours before the present study; 4) history of receiving DN in the previous 3 months; 5) contraindications for DN; 6) inability to perform the tests or fatigue protocol; and 7) lack of consent.

Outcome Measures
The outcome measures were Isometric Peak Torque (IPT), Single Leg Hop (SLH) test, and Y Balance Test (YBT).

Procedure
An experienced physiotherapist assessed the patients at baseline and after intervention. The outcome tests and measurements were administered randomly. After recording demographic information and the baseline measurements (T0), the fatigue protocol was performed. Measurements were performed again immediately after completion of the fatigue protocol (T1). Next, DN was performed randomly for 1 minute each on the right Vastus Lateralis (VL), Vastus Medialis (VM), and Rectus Femoris (RF) using a fast in and fast out technique (15). Immediately after DN, all measurements were performed again (T2).

Measurements
Isometric Peak Torque
An Isometric Dynamometer Biodex Multi-Joint Systems (USA) was used to measure the IPT of the quadriceps muscle. The subjects were tested in a seated position with their thighs firmly strapped to the seat of the dynamometer. Tow straps were crossed over the chest to stabilize the trunk. The axis of rotation of the dynamometer lever arm was aligned with the lateral femoral condyle, and the lower leg was attached to the lever arm of the dynamometer at the level of the lateral malleolus. Before the test, subjects warmed up using four isometric contractions. Next, they were asked to perform a maximum voluntary isometric contraction (MVIC) of the quadriceps muscle to extend the knee. The MVIC was measured at 60° knee flexion. Three trials with a 3-second isometric contraction and a rest period of 9 seconds between trials were performed. The best score was recorded in N/m.

Single Leg Hop Test
The SLHT for distance was used to assess the functional performance of the lower extremity. To perform the SLHT, subjects were instructed to stand on the right leg, to jump as far forward as possible and land on the same leg without losing their balance or stepping onto the other leg. The test was repeated 3 times with a 9-second rest between jumps. The longest distance in cm was recorded as the test score. The SLHT has good reliability in normal young adults (15).

Y Balance Test
The YBT is a reliable tool to measure the dynamic balance in healthy people (16,17). Subjects were asked to stand on one leg while reaching with the other leg as far as possible in 3 different directions: 1) anterior; 2) posterior-medial; and 3) posterior- lateral. Measurements were taken three times and the best scores for each direction were added in cm and averaged to record the YBT score (6).

Fatigue Protocol
The Wingate Test (WT) was used to induce quadriceps muscle fatigue. A stationary cycle (Monark 884 E Peak Bike, Sweden) was used to perform the WT. Prior to the WT, a one-minute warm up exercise with no resistance was performed, after which the actual test was administered with the fly wheel resistance set at 0.075 kg per kg of body weight (18). The subjects were verbally encouraged to pedal as fast as possible for one minute. Upon completion of the test, the subjects performed an active cool down for one minute.
Dry Needling

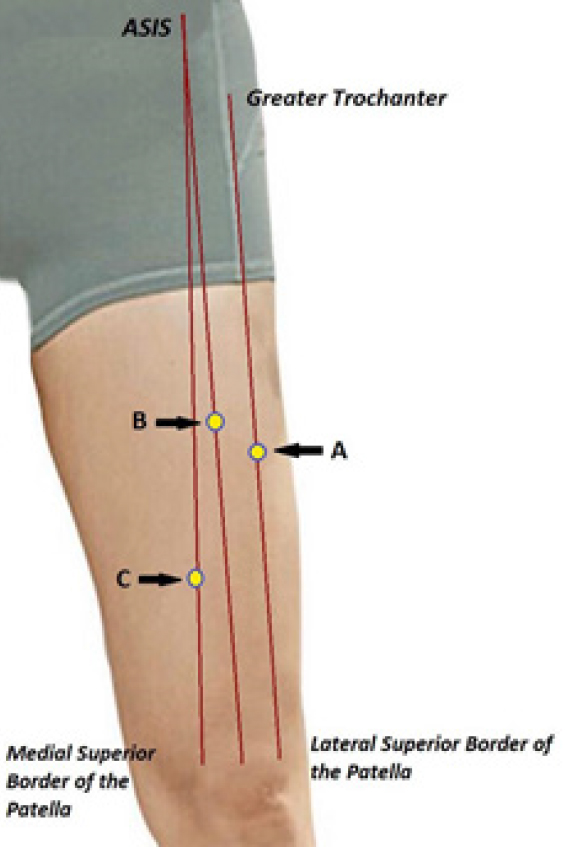

An expert physical therapist qualified in DN performed the needling procedure of the right quadriceps femoris. While the subject was in supine with the leg in an extended neutral position, points on the VM, VL, and the RF muscles were randomly needled using stainless steel needles with a diameter of 0.3 mm and a length of 50 mm (DongBang Acupuncture Inc., Boryeoung, Korea) each for one minute using a fast in and fast out technique. The VM point was located at about 25% of the distance of a line from the medial superior border of the patella to the Anterior Superior Iliac Spine (ASIS); the VL point was located at the mid-thigh along a line from the lateral superior border of the patella to the apex of greater trochanter; the RF point was located at the mid-thigh along a line from the superior border of patella to the ASIS (19) (Figure 1).

Statistical Analysis
Statistical analyses were performed using the SPSS 25.0 software (IBM, Inc., Armonk, NY, USA). Descriptive statistics were calculated for all variables. The Kolmogorov-Smirnov test was performed to evaluate the normality of outcome variables. A general linear model, one-way repeated measures (ANOVA) was used to examine the effects of the DN. If the homogeneity of variances was not met using Mauchly’s test of sphericity, the Greenhouse-Geisser estimate was used. Post hoc test with Bonferroni adjustment was used to compare the time points within group. Cohen’s d was calculated to determine the effect sizes of DN. Interpreting the Cohen’s d values were as follows: negligible (<0.20); small (<0.50); moderate (<0.80); and large (≥0.80).

Results
Fifteen young healthy subjects (13 male, 2 female) with a mean age of 26.13 ± 5.93 years were included in the study. Subjects reported no side effects from the DN. The demographic data are shown in table 1.

Isometric Peak Torque
The mean IPT decreased after the fatiguing activity (p=0.008), improved after DN at T2 (~26%, p<0.001) and reached the previous level before the fatiguing activity (Table 2). Cohen’s d of effect size was 0.61.

Single Leg Hop Test
The mean score on the SLHT decreased after the fatiguing activity (p=0.02), improved after DN at T2 (~19%, p<0.001) and reached the previous level before the fatiguing activity (Table 2). Cohen’s d of effect size was 0.57.

Y Balance Test
The mean score on the YBT decreased after the fatiguing activity (p=0.04), improved after DN at T2 compared to T1 (p<0.001) and reached the level of T0 (p=0.004) (Table 2). Cohen’s d of effect size was 0. 7.

Table1. Demographics of study subjects



Mean

SD*

Minimum

Maximum

Age (year)

26.1

5.9

20.0

40.0

Height (cm)

176.7

8.3

161.0

190.0

Weight (Kg)

77.7

14.5

55.0

102.0

*: Standard deviation

Table 2. Mean±SD* for outcome measures



Before fatigue

T0

After fatigue

T1

After dry needling

T2

Repeated measures ANOVA

Isometric peak torque, Nm

160.9±62.0

131.3±48.5

165.0±61.0

F(2,28) =14.0,

p < 0.001

Single leg hop test, cm

91.3±25.1

79.7±26.9

94.5±24.8

F(2,28)=11.02,

p < 0.001

Y balance test, cm

89.8±9.1

86.9±11.4

94.7±10.8

F(2,28)=25.45,

p < 0.001)





Discussion
Many people, including athletes, commonly experience muscular fatigue which, if not resolved, can restrict their performance and activities potentially leading to various health disorders. Quadriceps muscle fatigue can affect postural control, balance, gait, muscle contractile capacity, and proprioception. This study revealed that in young adults, a single 3-minute session of DN following a quadriceps fatiguing activity improved quadriceps muscle peak torque, single leg hop distance, and total Y balance test score reflecting recovery from fatigue. The results of this pilot study support the use of DN in people with muscle fatigue. As far as we know, this is the first study that evaluated the effects of DN on muscle recovery after muscle fatigue.

Isometric Peak Torque
In the present study, IPT recovered after DN and reached the level of pre-fatiguing activity after only a 3-minute DN intervention. The reduction of muscle force after activities and the subsequent muscle fatigue indicates a failure of the contractile mechanisms. The observed drop in torque following the onset of fatigue recovered after DN possibly reflects improvements in the contractile mechanisms (3).
Sufficient blood flow plays an essential role in the maintenance of force output by providing oxygen and energy in the form of Adenosine Triphosphate (ATP) to working muscles. One factor in inducing muscle fatigue is a reduction in blood flow (20) or ischemia, which may lead to hypoxia. Dry needling has been shown to increase the local circulation and restore oxygenation, which in part may explain the recovery of IPT observed in the quadriceps muscles (9). In addition, the improved circulation and oxygenation following DN will modulate concentrations of multiple biochemical associated with fatigue-related hypoxia, which not only contribute to the increase in IPT after DN, but also result in a reduction in pain.
Considering that various peripheral and central neural structures have roles in muscle force output (3), some effects of DN may occur at neural levels, which also may have contributed to an improved IPT. Muscle afferents in groups III/IV have been shown to interact with cardiovascular and respiratory systems that consequently improve muscle blood flow and oxygenation and contribute to the management of muscle fatigue (21). It may be hypothesized that manipulation of the quadriceps muscle by DN could have improved the muscle blood flow and oxygenation through stimulating group III/IV afferents. Subsequently, interactions with cardiovascular and respiratory processes may have contributed to recovery of the quadriceps muscle fatigue. Furthermore, the needle was applied close to motor points of the quadriceps muscle and perhaps, manipulation of the needles stimulated motor nerves and contributed to an increase in quadriceps muscle activity and maximum force of the knee extensors (13,22).

Single Leg Hop Test
The SLHT is an objective functional test allowing quantitatively measuring the strength and power of the leg. It is a dynamic test that challenges the individual control on motor output and movement direction. In the present study, DN significantly and quantitatively recovered the SLHT distances to pre-fatigue levels. It is plausible that a post-DN improvement of IPT provided a mechanism to improve the strength and control of the leg particularly the quadriceps muscle as reflected in the restored SLHT distance. Strength deficits of leg muscles due to fatiguing activities contribute to poor performance and functional mobility thus increase the risk of injury/re-injury. The recovery of the SLHT distance after DN is important as it indicates a full recovery of muscle strength and dynamic leg stability, which allow the individual to return to sports or other activities.

Y Balance Test
Muscle fatigue decreases the ability to produce sufficient force to perform functional tasks and increases the risk of injury. In the current study, the YBT was used as it is a functional test that evaluates dynamic balance and risk of injury. It requires a subject to have sufficient strength, flexibility, stability, joint range of movement, balance, and proprioception (23). Failure to perform the YBT may indicate an impairment in the neuromuscular control system.
In this study, subjects who received DN showed a significant improvement in the YBT. The performance scores on the YBT after DN were significantly higher than the pre-fatigue scores at T0 and the scores measured immediately after the fatigue protocol at T1. Again, the recovery of the IPT after DN may have restored sufficient muscle strength of the quadriceps muscle to correctly perform the YBT. The significant improvement in the YBT scores after DN may be an indicator of a normal neuromuscular system recovered after a fatiguing activity.
The higher performance on the YBT observed after DN suggest that the DN intervention may have normalized the mechanical behavior of the muscle (14) by potentially affecting nearby muscle spindles. This may have increased their excitability and firing rate necessary for accurate proprioceptive signaling and efferent information (24). This neuromechanical coupling might have occurred alongside an increased excitatory drive from the motor cortex to the motor neurons and improved sensorimotor function resulting in a higher performance on the YBT. Future research should include appropriate dependent variables and objective measuring tools to confirm the hypothesized mechanisms.

Limitation
This pilot study included small sample of subjects. There was no control, sham, or placebo group. An important limitation was that the subjects and assessor were not blinded.

Conclusion
This pilot study utilized a single 3-minute DN session after triggering quadriceps muscle fatigue. Significant improvements in IPT and SLS and YBT scores were achieved. The results suggest that DN offers a potential novel recovery strategy for muscle fatigue. Future investigations with a control group and larger samples are needed to verify the findings and elucidate the potential mechanisms.

Acknowledgments
The authors would like to thank the subjects who participated in this study. We also thank the Research Deputy, Tehran University of Medical Sciences (TUMS) for supporting this study. This study was supported by a grant from the Sports Medicine Research Center, Neuroscience Institute, TUMS (97-03-53-40397).

Conflict of Interests
Dr. Jan Dommerholt is affiliated with Myopain Seminars, LLC, Bethesda, MD, USA, an organization that promotes the recognition and application of dry needling. Dr. Dommerholt receives royalties from published books.

1. Gandevia SC. Spinal and supraspinal factors in human muscle fatigue. Physiol Rev 2001;81 (4):1725-89. . https://www.ncbi.nlm.nih.gov/pubmed/11581501
2. Paul L, Wood, l. Skeletal muscle fatigue. Phys Ther Rev 2002;7(2):123-32.
3. Wan JJ, Qin Z, Wang PY, Sun Y, Liu X. Muscle fatigue: general understanding and treatment. Exp Mol Med 2017; 49(10):e384. https://pubmed.ncbi.nlm.nih.gov/28983090/
4. Gribble PA, Hertel J. Effect of lower-extremity muscle fatigue on postural control. Arch Phys Med Rehabil 2004;85(4):589-92. https://www.ncbi.nlm.nih.gov/pubmed/15083434
5. Calleja-González J, Mielgo-Ayuso J, Sampaio J, Delextrat A, Ostojic SM, Marques-Jiménez D, et al. Brief ideas about evidence based recovery in team sports. J Exerc Rehabil 2018;14(4):545-50. https://www.ncbi.nlm.nih.gov/pmc/articles/PMC6165975/
6. Ansari NN, Naghdi S, Karimi-Zarchi H, Fakhari Z, Hasson S. A randomized controlled pilot study to investigate the effect of whole body vibration on lower-extremity fatigue. J Sport Rehabil 2017;26(5):339-46. https://www.ncbi.nlm.nih.gov/pubmed/27632878

7. Dommerholt J, Fernández-de-Las-Peñas C, Petersen SM. Needling: is there a point? J Man Manip Ther 2019;27(3):125-7. https://www.ncbi.nlm.nih.gov/pubmed/31230588
8. Cerezo-Téllez E, Torres-Lacomba M, Mayoral-Del-Moral O, Pacheco-da-Costa S, Prieto-Merino D, Sánchez-Sánchez B. Health related quality of life improvement in chronic non-specific neck pain: secondary analysis from a single blinded, randomized clinical trial. Health Qual Life Outcomes 2018;16(1):207. https://www.ncbi.nlm.nih.gov/pubmed/30400984
9. Hsieh YL, Yang SA, Yang CC, Chou LW. Dry needling at myofascial trigger spots of rabbit skeletal muscles modulates the biochemicals associated with pain, inflammation, and hypoxia. Evid Based Complement Alternat Med 2012;2012:342165. https://www.ncbi.nlm.nih.gov/pubmed/23346198
10. Ansari NN, Naghdi S, Fakhari Z, Radinmehr H, Hasson S. Dry needling for the treatment of poststroke muscle spasticity: a prospective case report. NeuroRehabilitation 2015;36(1):61-5. https://www.ncbi.nlm.nih.gov/pubmed/25547766
11. Fakhari Z, Ansari NN, Naghdi S, Mansouri K, Radinmehr H. A single group, pretest-posttest clinical trial for the effects of dry needling on wrist flexors spasticity after stroke. NeuroRehabilitation 2017;40(3):325-36.  https://www.ncbi.nlm.nih.gov/pubmed/28222554

12. Sanchez-Mila Z, Salom-Moreno J, Fernandez-de-Las- Penas C. Effects of dry needling on post-stroke spasticity, motor function and stability limits: a randomised clinical trial. Acupunct Med 2018;36(6):358-66. https://www.ncbi.nlm.nih.gov/pubmed/29986902
13. Haser C, Stöggl T, Kriner M, Mikoleit J, Wolfahrt B, Scherr J, et al. Effects of dry needling on thigh
muscle strength and hip flexion in elite soccer players. Med Sci Sports Exerc 2017;49(2):378-83. https://www.ncbi.nlm.nih.gov/pubmed/27685009
14. Ansari NN, Alaei P, Naghdi S, Fakhari Z, Komesh S, Dommerholt J. Immediate effects of dry needling as a novel strategy for hamstring flexibility: a single blinded clinical pilot study. J Sport Rehabil 2020;29(2):156-61. https://www.ncbi.nlm.nih.gov/pubmed/30526283
15. Sawle L, Freeman J, Marsden J. Intra-rater reliability of the multiple single-leg hop-stabilization test and relationships with age, leg dominance and training. Int J Sports Phys Ther 2017;12(2):190-8. https://www.ncbi.nlm.nih.gov/pubmed/28515973
16. Shaffer SW, Teyhen DS, Lorenson CL, Warren RL, Koreerat CM, Straseske CA, et al. Y-balance test: a reliability study involving multiple raters. Mil Med 2013;178(11):1264-70. https://www.ncbi.nlm.nih.gov/pubmed/24183777
17. Plisky PJ, Gorman PP, Butler RJ, Kiesel KB, Underwood FB, Elkins B. The reliability of an instrumented device for measuring components of the star excursion balance test. N Am J Sports Phys Ther 2009;4(2):92-9. https://www.ncbi.nlm.nih.gov/pmc/articles/PMC2953327/
18. Bar-Or O. The Wingate anaerobic test. An update on methodology, reliability and validity Sports Med 1987;4(6):381-94. https://www.ncbi.nlm.nih.gov/pubmed/3324256
19. Botter A, Oprandi G, Lanfranco F, Allasia S, Maffiuletti NA, Minetto MA. Atlas of the muscle motor points for the lower limb: implications for electrical stimulation procedures and electrode positioning. Eur J Appl Physiol 2011;111(10):2461-71. https://www.ncbi.nlm.nih.gov/pubmed/21796408
20. Degens H, Salmons S, Jarvis JC. Intramuscular pressure, force and blood flow in rabbit tibialis anterior muscles during single and repetitive contractions. Eur J Appl Physiol Occup Physiol 1998;78(1):13-9. https://www.ncbi.nlm.nih.gov/pubmed/9660151
21. Taylor JL, Amann M, Duchateau J, Meeusen R, Rice CL. Neural contributions to muscle fatigue: from the brain to the muscle and back again. Med Sci Sports Exerc 2016;48(11):2294-306. https://www.ncbi.nlm.nih.gov/pubmed/27003703
22. Dar G, Hicks G. The immediate effect of dry needling on multifidus muscles’function in healthy individuals. J Back Musculoskelet Rehabil 2016;29(2):273-8. https://www.ncbi.nlm.nih.gov/pubmed/26406203
23. Gonell AC, Romero JA, Soler LM. Relationship between the balance test scores and soft tissue injury incidence in a soccer team. Int J Sports Phys Ther 2015;10(7):955-66. https://www.ncbi.nlm.nih.gov/pmc/articles/PMC4675196/
24. Mullins JF, Nitz AJ, Hoch MC. Dry needling equilibration theory: A mechanistic explanation for enhancing sensorimotor function in individuals with chronic ankle instability. Physiother Theory Pract 2019:1-10. [Epub ahead of print]. https://www.ncbi.nlm.nih.gov/pubmed/31311365
